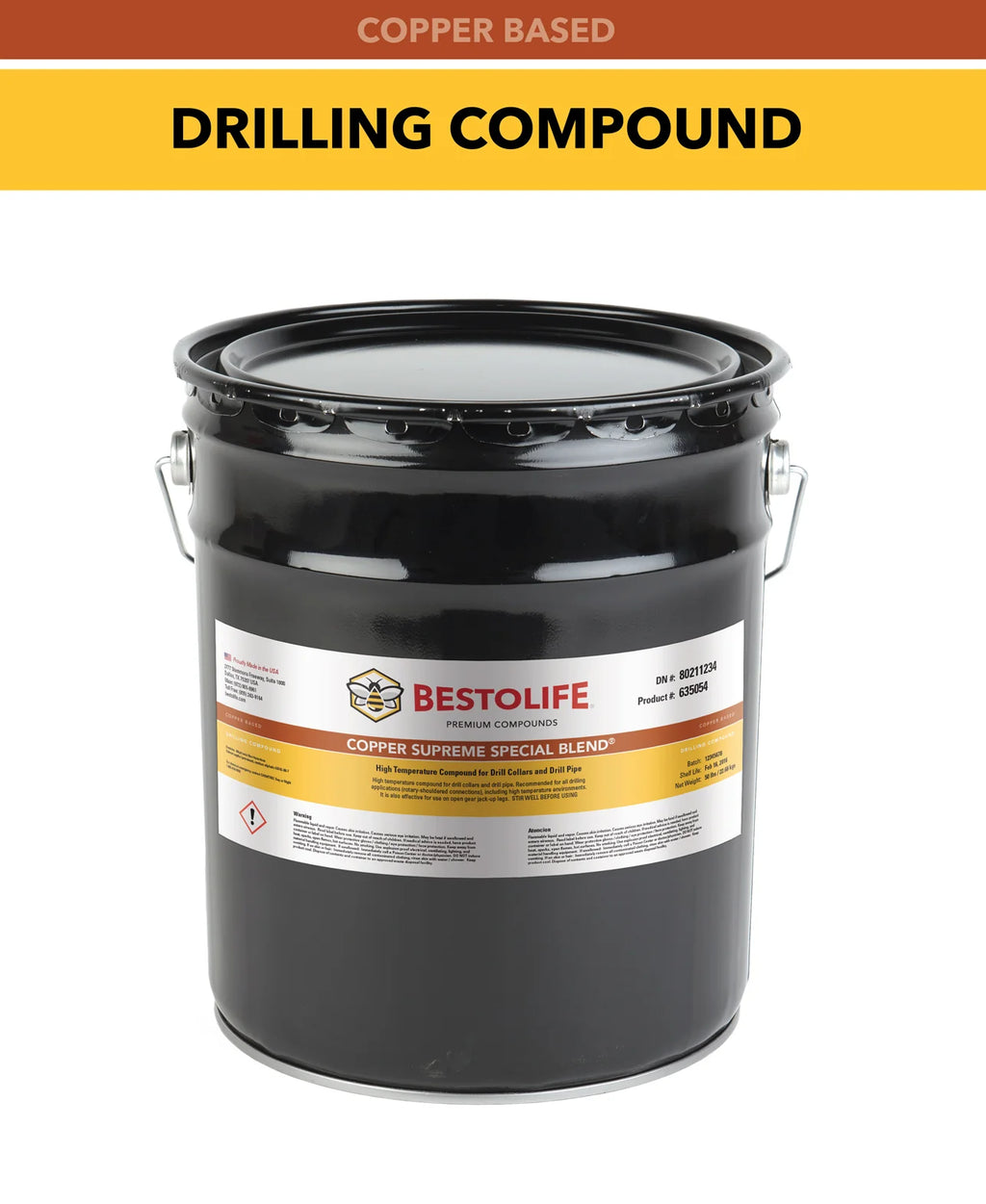

BESTOLIFE Copper Supreme Blend Drilling Thread Compound

BESTOLIFE® Copper Supreme Special Blend® (CSSB) is a non-lead, non-zinc compound that applies easily in a wide range of temperatures and conditions. CSSB is washout resistant and will not harden or bleed excessively in storage.

Applications

High temperature compound for drill collars and drill pipe. Recommended for all drilling applications (rotary-shouldered connections), including high temperature environments. It is also effective for use on open gear jack up legs.

Product Characteristics

Color:

Copper

Penetration:

300-320 (ASTM D-217)

NLGI Grade:

1

Weight/Gallon:

10.2 pounds/gallon

Thickener:

Lithium Complex

Fluid Type:

Petroleum

Dropping Point:

≥500°F (≥260°C)(ASTM DD2265)

Flash Point:

≥392°F (≥200°C)

Brushable To:

15°F (-9°C)

Copper Corrosion:

1A

Oil Separation:

<3.0%

Service Rating:

600°F (316°C)

Friction Factor:

1.15*

Shelf Life:

4 years (unopened container)

Contains:

Copper flake, synthetic and amorphous graphite, and other nonmetallic additives
