Overview: The primary rotational power transmission module for driving the cleaning or feeding mechanism.
Key Features: Comes equipped with a heavy-duty hydraulic/pneumatic motor, a drive roller wheel, precision mounting shafts, fittings, and locking hardware.
Application: Delivers consistent torque and reliable rotational speed to keep pipe moving smoothly through the cleaning cycle.
| Item # | Part | Description | Quantity |
|---|---|---|---|
| 1 | M13566 | DRIVE HUB | 1 |
| 2 | M14131 | BOLT, HHCS, .75" X 1.25" | 1 |
| 3 | M14133 | WASHER, LOCK, .75" | 1 |
| 4 | M14134 | LOCK WASHER CASTING | 1 |
| 5 | M15612 | # 4 MSAE X # 4 MJIC 90º ELBOW, ( 2062-4-4) | 1 |
| 6 | M15739 | # 10 MSAE X #10 MJIC 90º ELBOW, (2062-10-10) | 1 |
| 7 | M15790 | # 10 MSAE X # 10 MJIC LONG 90º ELBOW | 1 |
| 8 | M16298 | 1/4" x 1-1/4" KEY | 1 |
| 9 | M16391 | CHARLYNN HYD MOTOR | 1 |
| 10 | M17149 | SET SCREW, .3125"-18 X .3125" | 2 |
| 11 | M22510 | WHEEL, 18001JT, GROOVED | 1 |

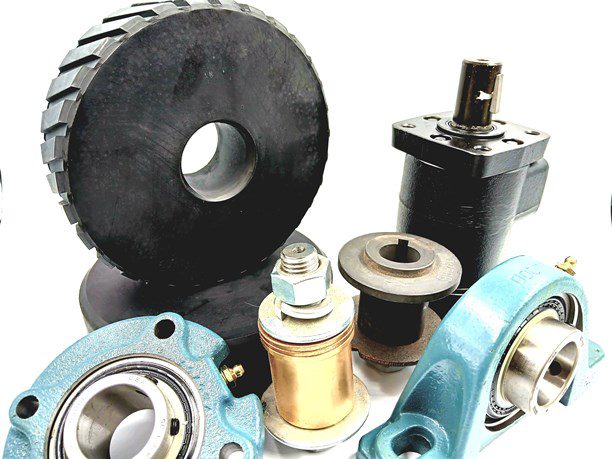

Pipe Cleaning Machine Replacement Parts

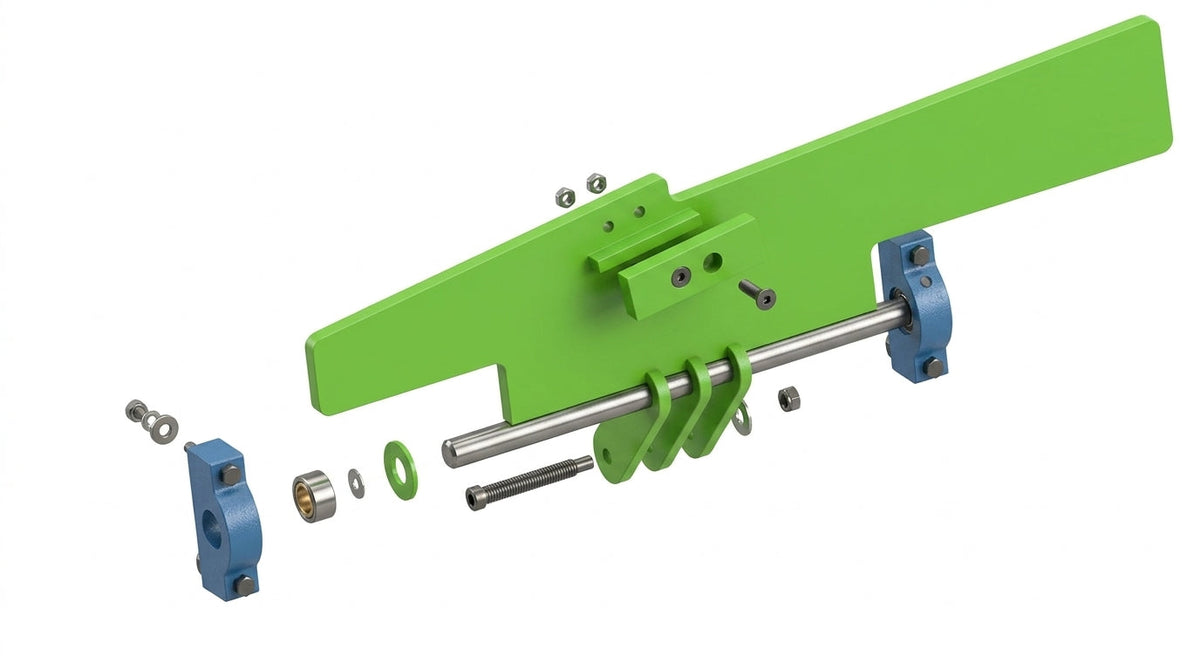

Paddle Loader

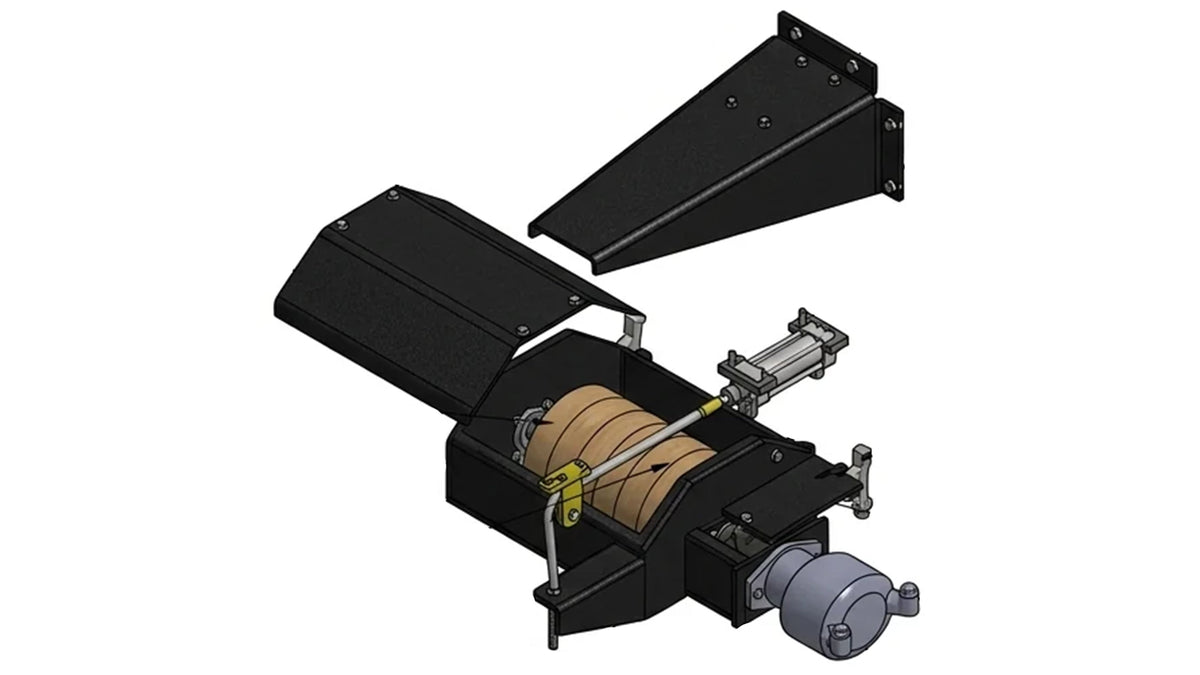

New Brush Housing Assembly

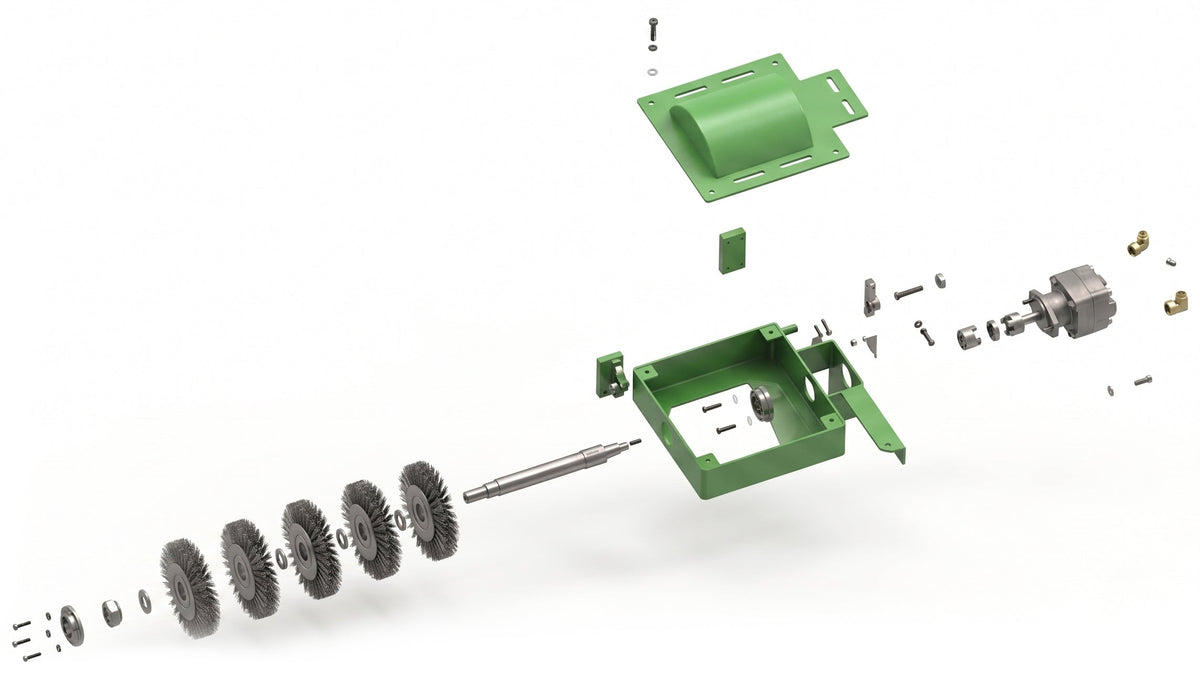

Brush Housing Assembly

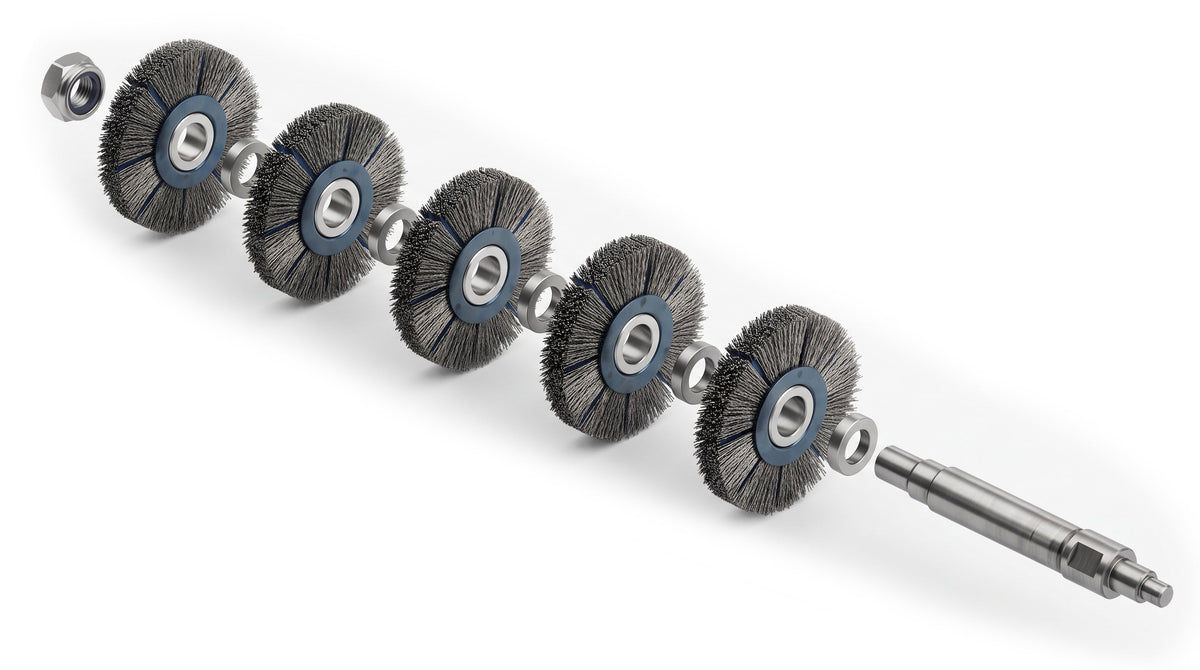

Twist-Knot Brush Assembly

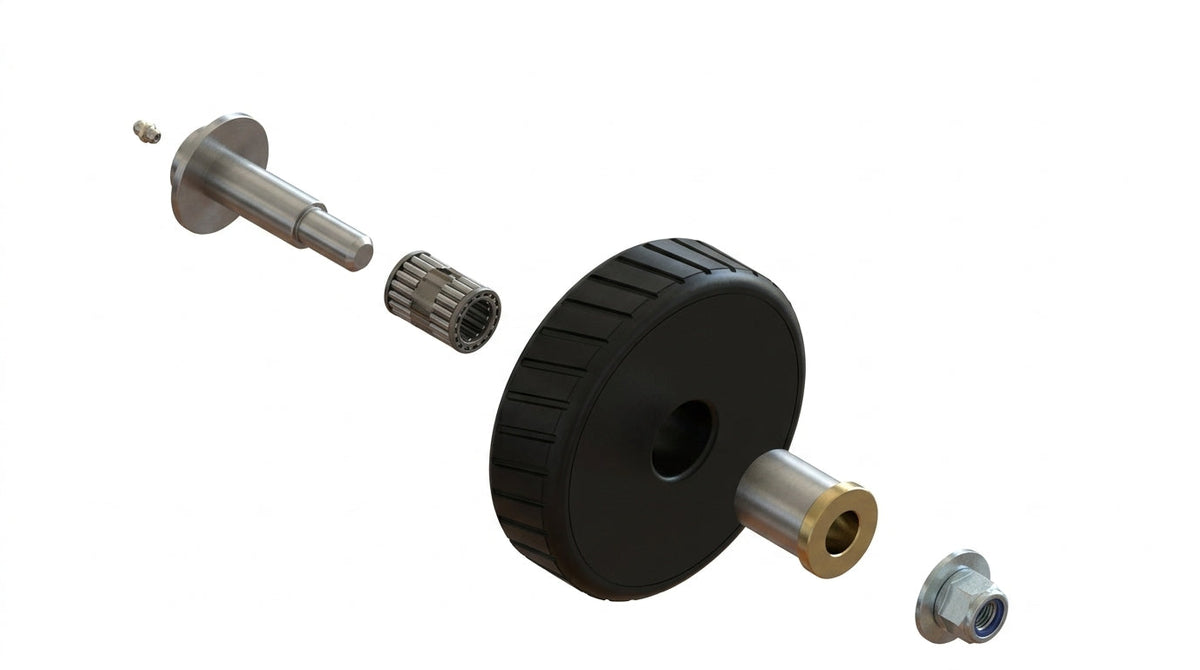

Idler Station

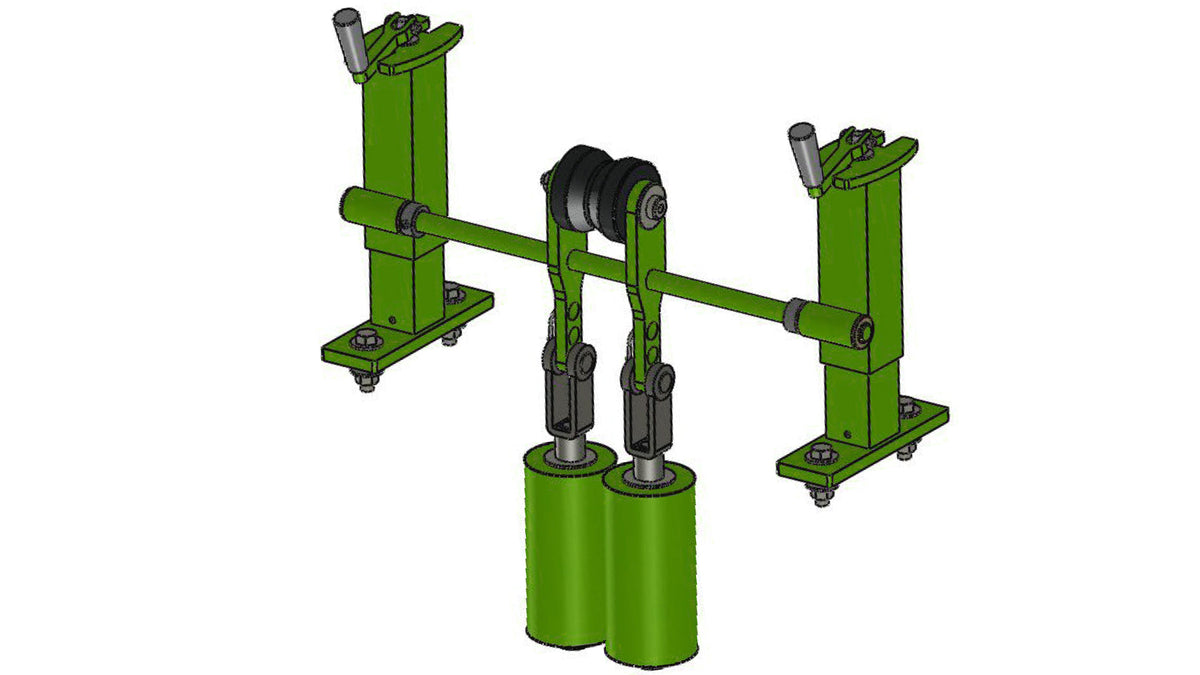

Front Lance Assembly

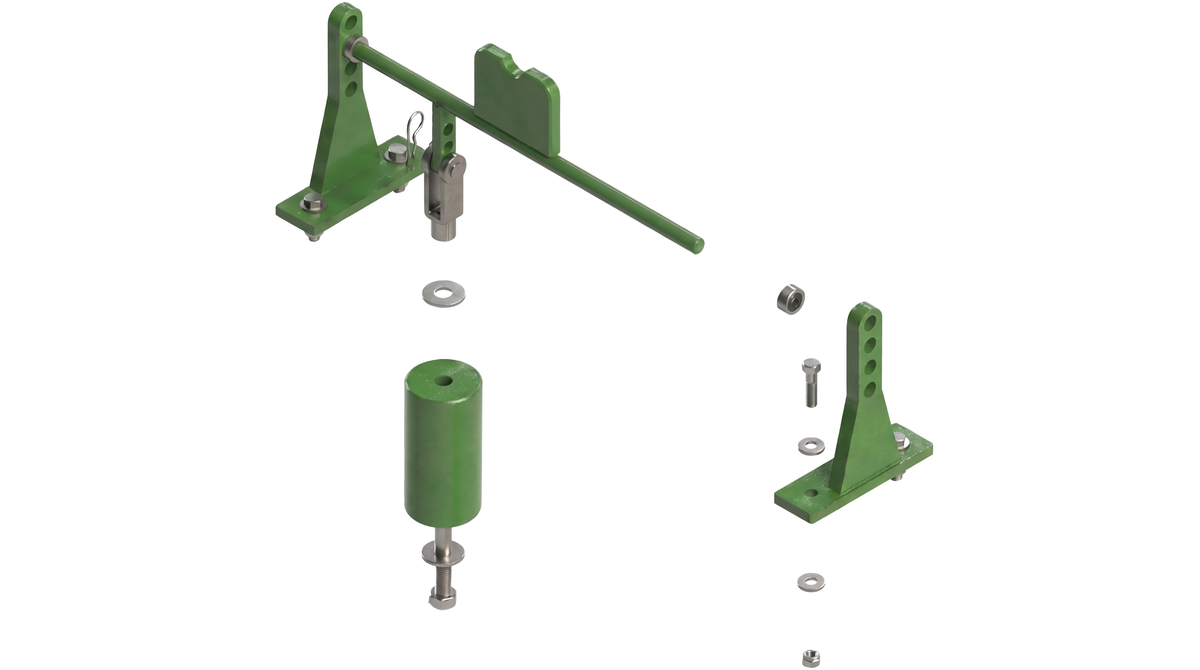

Mid Lance Support

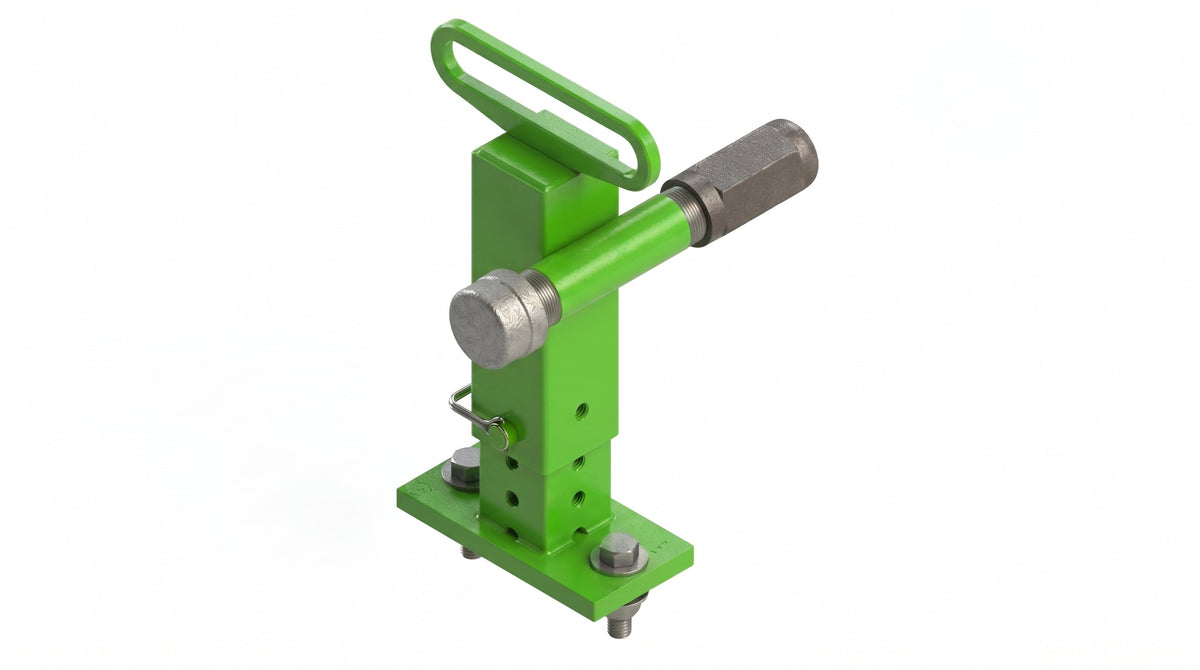

Rear Lance Assembly

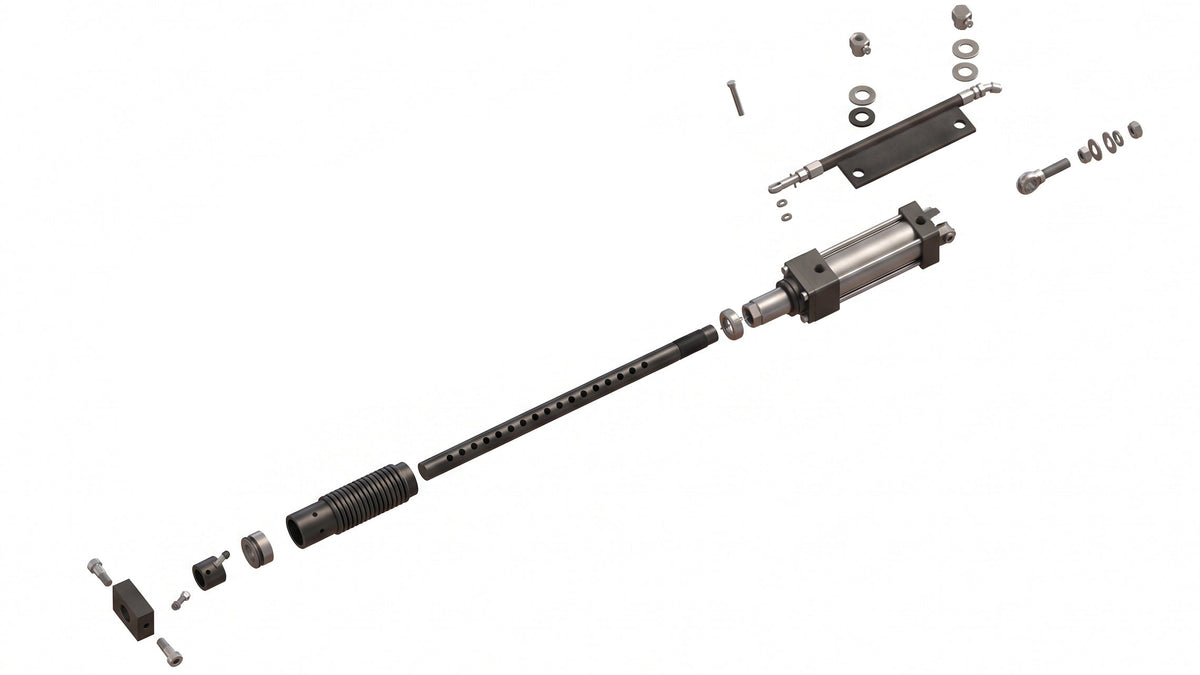

Secondary Assist Cylinder

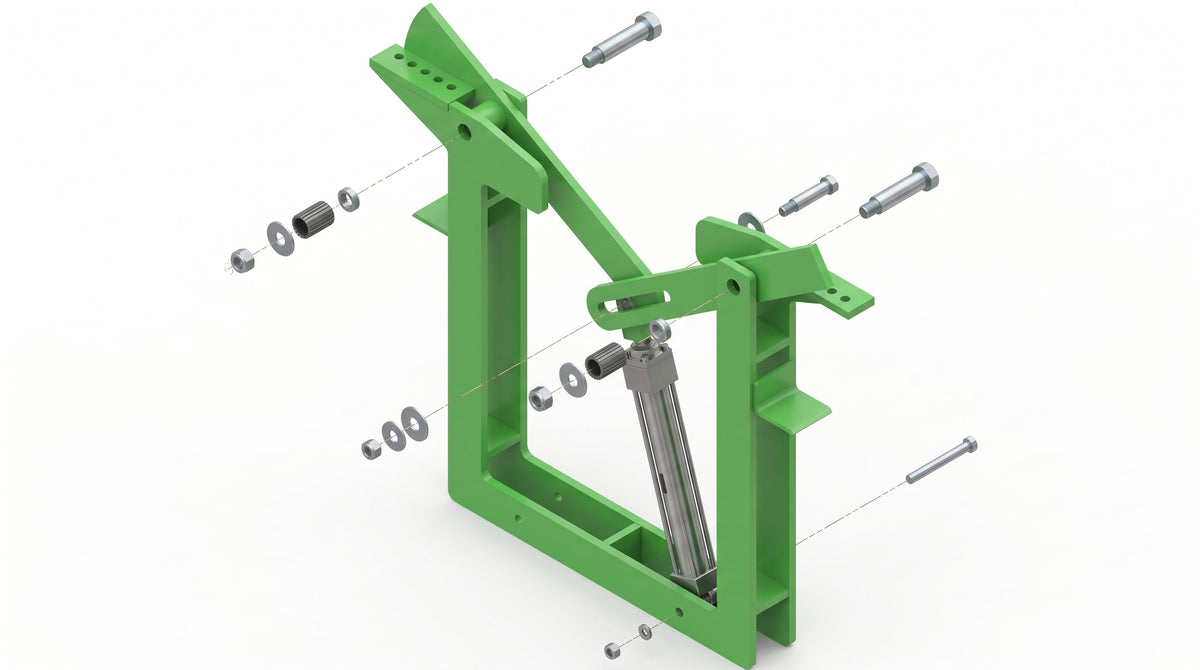

Scissor Loader

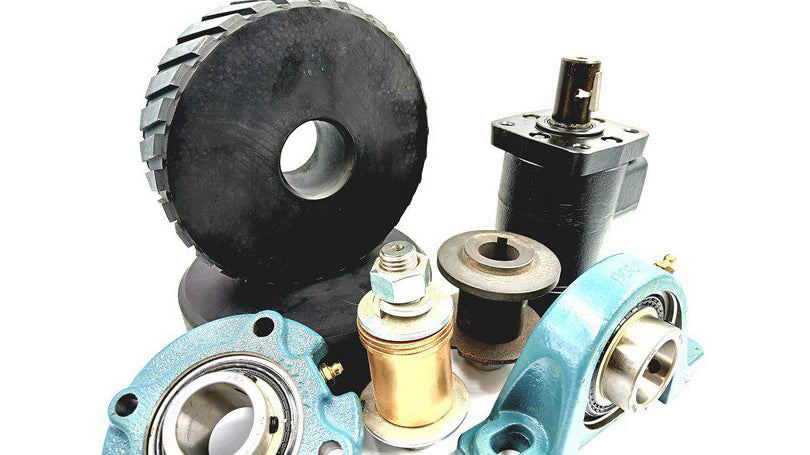

Essential Spare Parts

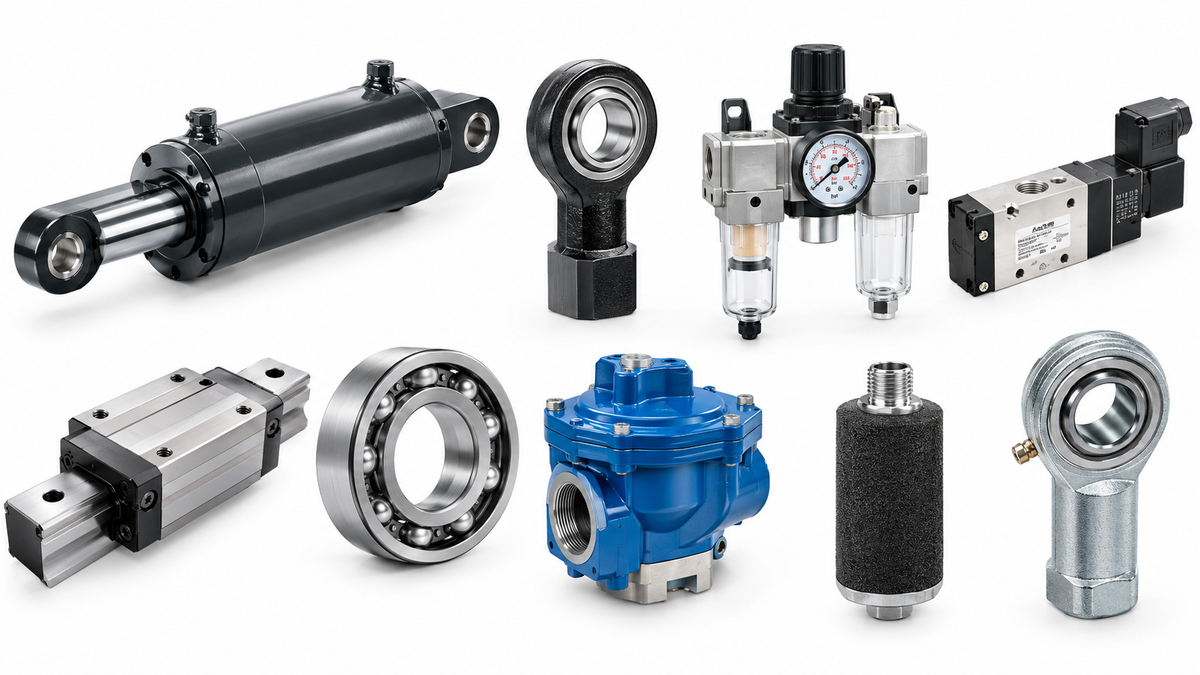

Additional Recommended Spare Parts

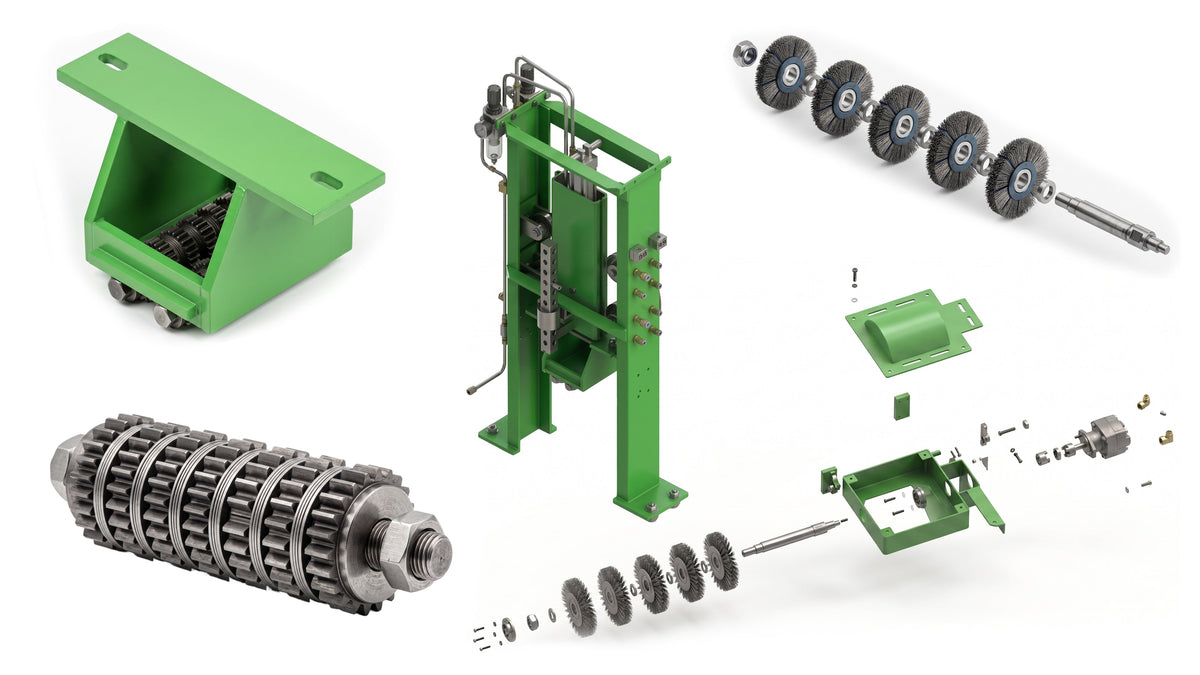

OD Cleaning Assemblies & Parts
